gfx-playground

cross platform rendering playground

Clone

Loading...

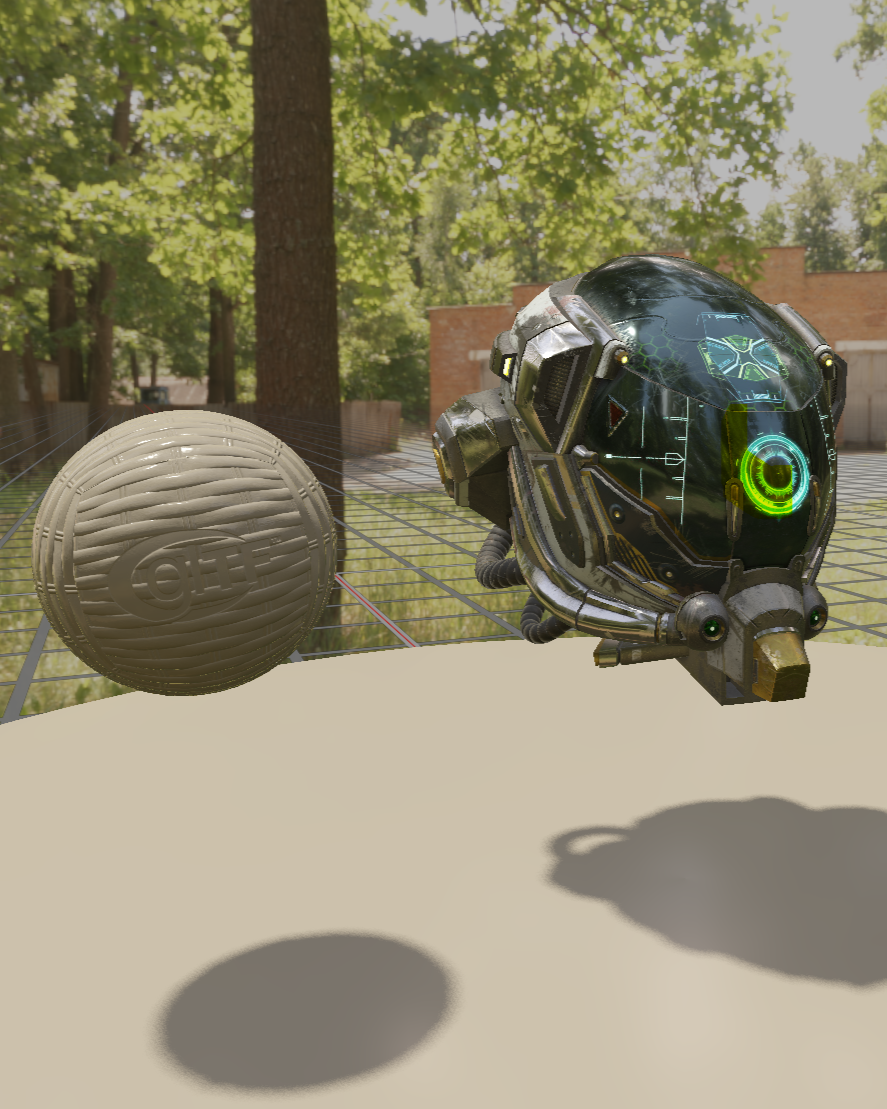

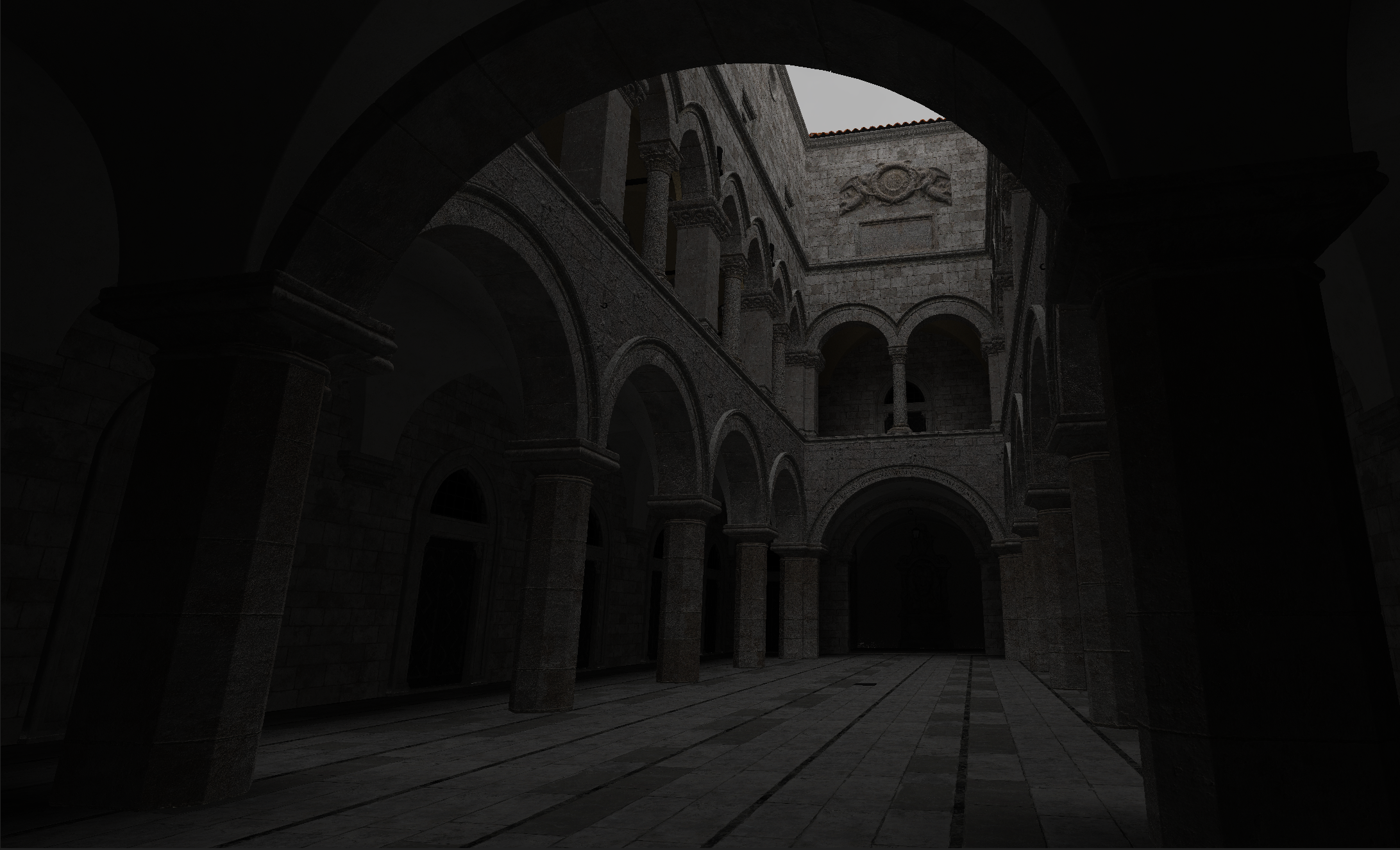

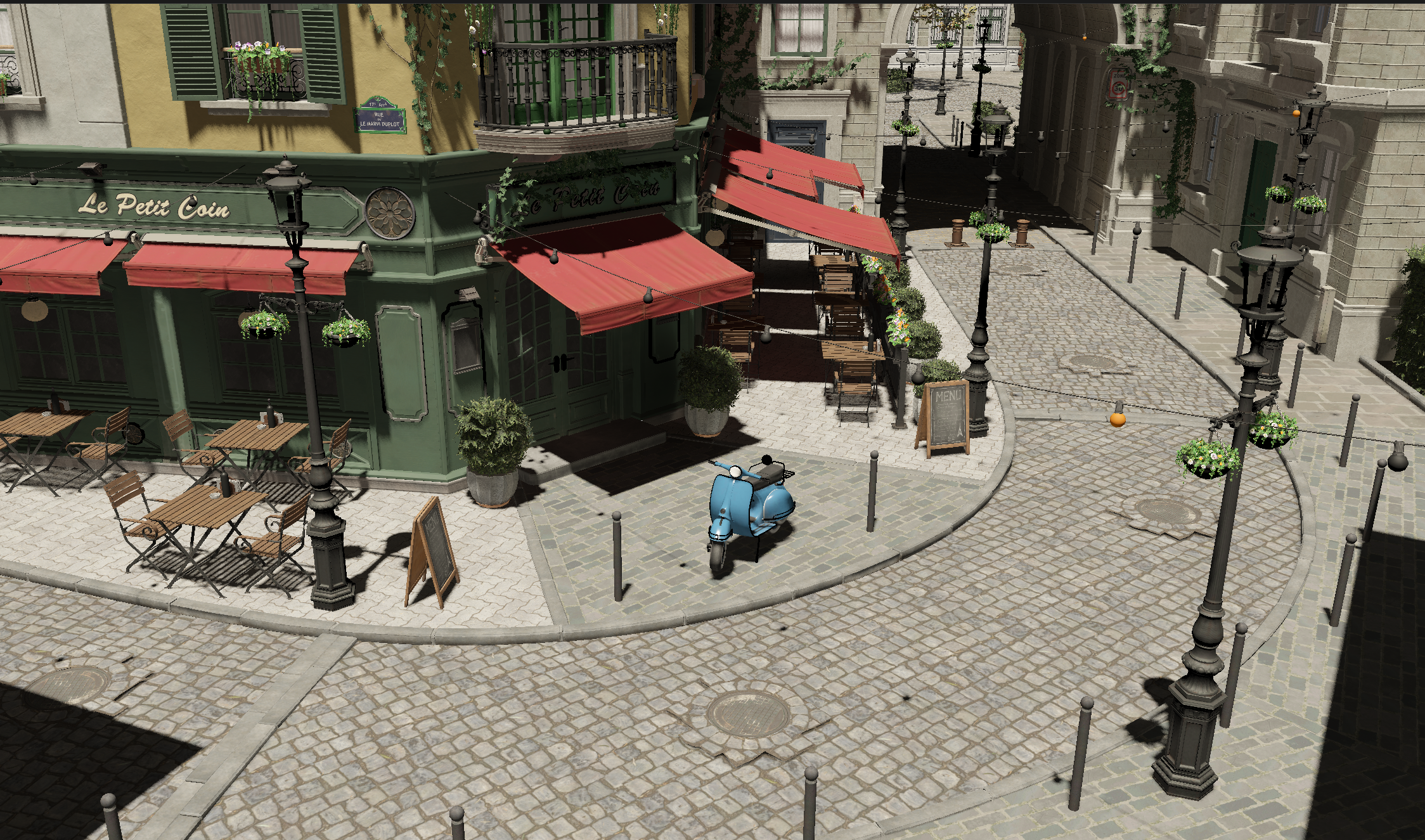

Screenshots

Screenshots from the gfx-playground

Overview

GPU driven Vulkan/Metal playground renderer (main renderer is Vulkan on Windows/Linux for now), contains a rendering interface, a precompiled frame-graph, DescriptorHandle<T> based bindless resource fetching, and a basic ImGui editor. Generally intended to be a gfx lab bench for myself.

  • Explicit frame-graph (src/passes/fg.*), passes declare read/write states and barriers get baked outside the hot path.
  • GPU-driven MDI forward path: compute shader, build-indirect, HiZ and frustum culling -> depth-pre -> forward.
  • Cascaded shadow maps, clustered point lights, DDGI or infinite IBL for indirect.
  • IBL skybox from HDR, gltf load (cgltf + KTX + mikktspace), ImGui editor with shader reload.
  • Render backend abstraction in src/backend/rhi.h. Metal coverage runs src/backend/conformance/* for now as I work on expanding the coverage.

Local setup

  • Vulkan SDK 1.4+
  • C++20, CMake 3.31+ (CMake path only), Ninja recommended
  • Windows: VS2022 + vswhere on PATH (bat should find it for you). Linux: gcc/clang + dev Vulkan headers. macOS: conformance-only (main renderer unsupported, Metal WIP).
git submodule update --init --recursive

Submodules: glfw, VMA, rtm, imgui, KTX-Software, plog. Slang 2026.17.1 is fetched as a binary (CMake FetchContent, or auto-downloaded by the bat/sh scripts)

Scripts

build_win.bat                 # Windows debug
build_win.bat -r              # Windows release
build_win.bat -c              # clean rebuild
build_win.bat triangle        # conformance probe (no renderer)
./build_linux.sh              # Linux debug (add triangle for probe)
./build_linux.sh -r           # Linux release
./build_mac.sh triangle       # macOS probe only

CMake

cmake -B build -G Ninja -DCMAKE_BUILD_TYPE=Debug
cmake --build build

To-do

There's generally just a lot to do all over the place in this, but currently I'm just slowly chipping away at the editor and Metal coverage, toward renderer.cpp.
